QPQ process preheated and two step oxidation to form an oxide film only in the nitriding step deeper penetration of the complex layer.

After the workpiece immersed in a salt bath nitriding , N decomposition of cyanate , C atoms in the surface can be formed with high potential and C N potential . Since the N atom Fe atomic radius is half the radius of the radius of the C atoms is smaller , the N, C atoms may be diffused in the lattice of Fe atoms in the gap .

In the nitriding temperature (510-580 ℃) QPQ treatment , high-concentration N, C atoms to the inside surface diffusion formed in the first α-Fe solid solution . With the increase of the concentration of surface atoms , gradually formed γ '(Fe4N) compound and a compound ε (Fe2-3N). Eventually forming N, C concentration gradient from the surface to the center . Permeation layer is a compound layer with ε , ε -phase + γ ' phase , γ' phase , the following compounds are N layer in the α-Fe solid solution , to form a diffusion layer . Therefore , the workpiece QPQ nitrided layer tissue after treatment by three layers : the outer oxide film ; intermediate compound layer ; inward diffusion layer . Among the most important compound layer , consisting essentially of Fe2-3N, which is guaranteed to improve the wear resistance and reliable , and it is also good corrosion resistance . The main role of the compound is the oxide film constituting the resist layer with an excellent . At the same time it is a porous state , can the oil , to reduce friction , enabling to improve the wear resistance , as well as beautify the appearance . The main role is to enhance the diffusion layer Engineering Fatigue strength member , thin pieces of increased overall strength and flexibility is also a great role.

1 good abrasion resistance , fatigue resistance
This process can greatly improve the surface hardness and wear resistance of parts , reduce the friction coefficient . After QPQ treatment products , wear resistance than conventional quenching and high frequency quenching more than 16 times higher than the 20 # steel carburizing more than nine times higher than the hard chrome plating and ion nitriding more than 2 times . Fatigue tests showed that : the process can improve the fatigue strength of steel more than 40% , compared with ion nitriding , gas nitriding results are good. The process is particularly suitable for complex shape parts , solving key technology to allow deformation problems solved .

(2) good resistance to corrosion
Of several different materials , different samples treated by the same process conditions for the test , according to standard continuous ASTMBll7 spray test , salt spray test temperature of 35 ± 2 ℃, relative humidity of > 95%, 5% NaCL solution spray. The results showed that after the corrosion resistance of parts of QPQ treatment is 5 times 1Crl8Ni9Ti stainless steel , hard chromium plating is 70 times , 280 times is blackened .

3 small deformation after product handling

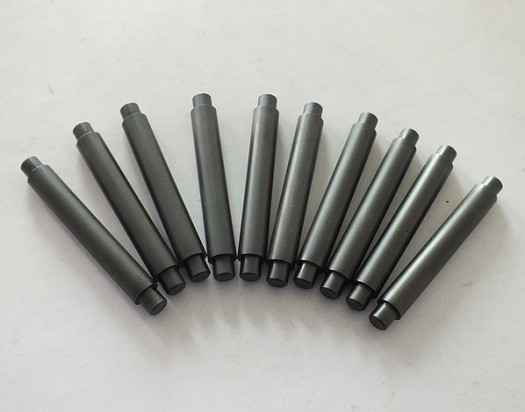

Workpiece deformation by QPQ almost no treatment after treatment , can effectively solve the conventional heat treatment methods are difficult to solve the problem of deformation hardening . For example: size of 510 × 460 × 2Cr13 stainless steel sheet of 1.5mm was after QPQ treatment, surface hardness greater than HRC60, roughness of less than 0.5mm. Currently , QPQ technology in the shaft parts too numerous , slender rods applications very successful , effective solution to the product deformation hardening and contradictions exist have been heat treated .

4 can replace the multi-channel heat treatment and anti-corrosion treatment step , a short period of time
After the workpiece QPQ treatment , to improve its hardness and wear resistance while improving on the basis of its corrosion resistance , and the formation of black , beautiful appearance , can replace a conventional quenching and tempering a black ( chrome ) , and other procedures shorten the production cycle, reduce production costs. A lot of production data show , QPQ treatment and case hardening can save 50% compared to hard chrome plating than 30 percent cost savings , cost-effective .

5 . Pollution level is high, no environmental pollution
QPQ treatment process identified by the relevant environmental protection department , and by the actual use of users throughout the country prove harmful substances emissions are lower than the national emission standards for allowable value. Due to advanced technology, stable quality , QPQ technology there are hundreds of different kinds of products .

Applicable to a wide range of materials technology 6.QPQ
The process for all iron, stainless steel materials are suitable , from pure iron , mild steel, structural steel , tool steel to a variety of high-alloy steel , stainless steel, cast iron and iron-based powder metallurgy .

Nitriding process refers to a certain temperature at a certain media manipulation nitrogen atoms into the workpiece surface chemical heat treatment process. After nitriding treatment products with excellent wear resistance , fatigue resistance , corrosion resistance and high temperature properties .

The main difference is the soft liquid nitrogen in the nitride layer has Fe3Nε phase , Fe4Nr phase with the presence of free Fe2Nξ nitride , ξ phase compounds in the nitriding process is hard and brittle ductile bad nitride liquid tufftride the workpiece is to be processed , the first descaling, degreasing , and then placed in a preheated nitride crucible crucible TF-1 is a salt -based agents, is heated to 560 ~ 600 ℃ processed to a number of hours , depending on the size of the work load of the external force , but decided nitride layer depth , in the process , it must pass into the bottom of the crucible in an air duct to the air a certain amount of salt nitriding agent is decomposed into CN or CNO, penetration and diffusion to work surface, so that the outermost surface compound 8 ~ 9% wt and a small amount of C and N diffusion layer diffuses into the nitrogen atom manipulation α-Fe base steel is more resistant to fatigue due to the consumption during the decomposition of nitrogen CNO , so continue to test the salt agent into 6 to 8 hours treatment

Parts , in order to adjust the amount of air or adding new salt agent.

Liquid nitriding soft iron material is treated with a metal , the surface hardness after nitriding containing Al, Cr, Mo, Ti element by high hardness , and the more its gold content and more shallow depth of nitride , such as carbon steel Hv350 ~ 650 stainless steel Hv1000 ~ 1200, nitrided steel Hv800 ~ 1100.

Soft liquid nitrogen for wear and fatigue resistance and other auto parts , sewing machines , cameras, etc. , such as cylinder liner treatment, gas treatment patriarch , dies at the piston cylinder handling and easily deformed .
